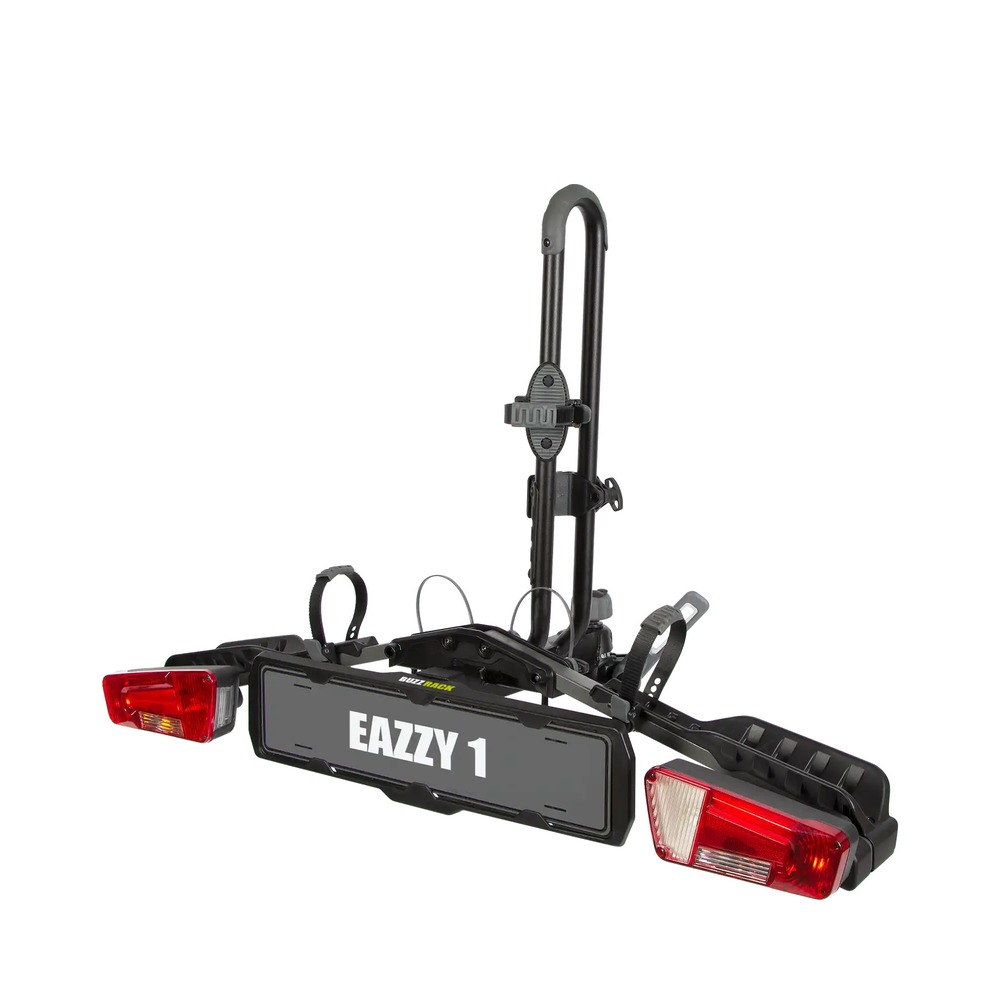

EAZZY 1 — Single-Bike Tow Bar Carrier
Folding platform for one bike
Smart, sophisticated and very good value — a dedicated folding platform for one bike.
Why it's easy to live with
A really well designed, well engineered piece of kit. The whole platform weighs just 7,3 kg, and the two wheel support trays fold into the bike holder uprights — held by straps — so it folds flat for easy lifting, carrying and boot storage.
Folds away in seconds
The two wheel support trays fold into the bike holder uprights, held by straps, so carrying, fitting and boot-storage are effortless — no awkward lump to wrestle in car parks.
Self-securing fit
Place it on the tow ball and it supports itself while you spin the wheel tight and lock it. Built to the exacting XPR 18-904-4 standard with an integrated anti-sway tensioner.
Gentle on your bike
360° rotating, rubber-padded frame cradles and strap systems hold any tube firmly but gently — entirely suitable for carbon frames. Wheel straps fit tyres up to 3,25".
Locks to the car, locks your bike
The patented conical fitting locks the carrier to any tow ball — even bolt-on ones — and a built-in cable secures your bike.
Fitted in its folded state
Because you fit the EAZZY 1 on the tow ball while folded, you have all the space you need to work on the tow ball fitting system. Two or three turns of the tightening wheel are usually enough, and the anti-sway tensioner’s integrated handle makes it simple.
Surprisingly light to handle
The metal parts are steel, not aluminium, but because it lifts vertically with two hands it feels much lighter than its weight — and there should be no strain on your back when moving, fitting or removing it.
What it carries
- Most wheelbases fit — even small children's bikes (not tandem)
- Tyres up to 3,25" wide on rubber-padded, quick-release straps
- Entirely suitable for carbon frame bikes — longer frame straps available
- Maximum load 20 kg — one bike at a time
- Down tubes up to 75 mm diameter accepted
- 13-pin lighting system including reversing light (7-pin adapter not included)
- Built-in locking cable to secure your bike (a deterrent, as all cable locks are)
- Locks to all tow balls, including bolt-on fittings
- Requires 65 mm clearance from the tow-ball centre to the rear of the vehicle
- Not suitable for trailers, campers or RVs — always check your tow bar's nose-weight limit
Built like a class act
Exemplary tube bending, welding, rust-proofing and finishing. Assembly is minor too: the lights attach with just one screw each side — fixtures and a tool are included. And if someone forgets the carrier is fitted and reverses into a wall, every part is replaceable.
Technical specifications
| Carries | 1 bike |
| Fits | 50 mm tow ball |
| Folding | Yes |
| Weight | 7,3 kg |
| Max load | 20 kg |
| Max tyre size | 3,25″ |
| Lightboard | 13-pin (incl. reversing light) |
| Locks | Rack + bike |
| Dimensions | 109 cm wide × 44 cm deep, measured from the centre of the tow ball to the outside edge of the number plate holder (25 cm wide when folded) |
Documentation & downloads
Technical information (Eazzy series)
The full Eazzy-series technical data sheet — mechanics, materials and dimensions.
Instruction manual
The official EAZZY 1 manual — fitting to the car, loading, folding and care.
ECE type-approval certificate (E4 26R-03)
The official European type-approval certificate (E4 26R-03) covering the EAZZY series.
Spare parts list
Part numbers for every replaceable component of the EAZZY 1.
Ready to roll with your bike safely on board?
EAZZY 1 — single-bike tow bar platform, supplied nearly fully assembled.
