EAZZY 4
Compact Tow Ball 4 Bike Platform
Light, easy to fold and easy to fit — premium 4-bike carrying that still folds flat.
Why it's easy to live with
Fully foldable with convenient mounting, user-friendly functions and compact storage. It carries four bikes on a platform weighing 19,8 kg — and folds flat for easy lifting, carrying and boot storage.
Folds away in seconds
The support trays fold into the bike holder uprights, held by straps, so carrying, fitting and boot-storage are effortless — no awkward, heavy lump to wrestle in car parks.
Self-securing fit
Place it on the tow ball and it supports itself while you spin the wheel tight and lock it. Built to the exacting XPR 18-904-4 standard with an integrated anti-sway tensioner.
Gentle on every bike

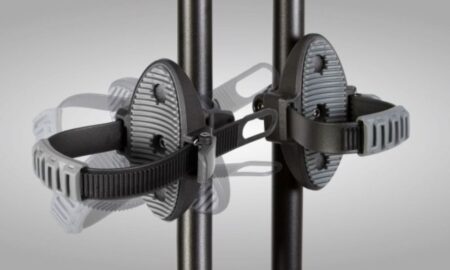

360° rotating, rubber-padded ratchet cradles hold any tube firmly but gently — a great solution for carbon frames. Long wheel straps fit tyres up to 3,25".
Locks to the car

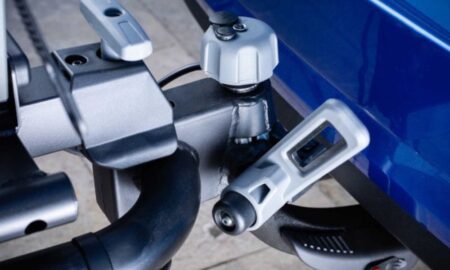

The patented conical fitting locks the carrier to any tow ball — even bolt-on ones — and a built-in cable secures your bikes.
Fitted in its folded state
Because you fit the EAZZY 4 on the tow ball while folded, you have all the space you need to work on the tow ball fitting system. Two or three turns of the tightening wheel are usually enough, and the anti-sway tensioner’s integrated handle makes it simple.
Well balanced, even fully loaded
The tilt is optimised so the lights never touch the road, using the weight of your bikes to help bring the platform back down in a controlled way. Note: tilted with bikes loaded, very tall vertical tailgates — e.g. Volkswagen Transporter T5/T6 — cannot be opened.
What it carries
- Most wheelbases fit — even small children's bikes (not tandem)

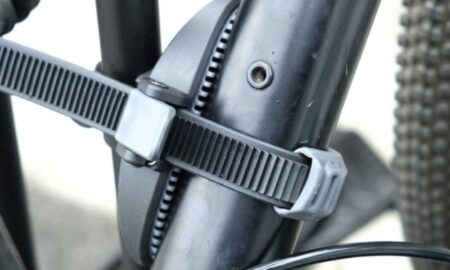

- Tyres up to 3,25" wide on rubber-padded, quick-release straps
- Entirely suitable for carbon frame bikes — the ratchet cradles apply no pressure to carbon tubes; longer frame straps available
- Maximum load 60 kg total — no bike over 20 kg; load heaviest nearest the car
- Down tubes up to 75 mm diameter accepted

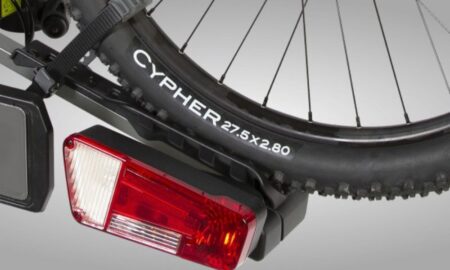

- 13-pin lighting system including reversing light (7-pin adapter not included)

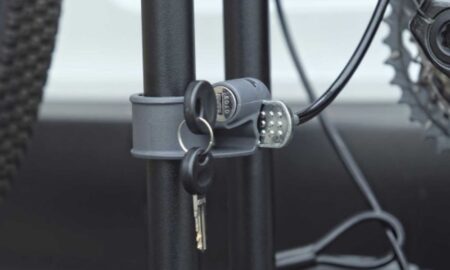

- Built-in locking cable to secure your bikes (a deterrent, as all cable locks are)
- Locks to all tow balls, including bolt-on fittings
- Requires 65 mm clearance from the tow-ball centre to the rear of the vehicle
- Not suitable for trailers, campers or RVs — always check your tow bar's nose-weight limit
Exemplary tube bending, welding, rust-proofing and finishing. Assembly is minor too: the lights attach with just one screw each side and there’s a single bolt for the number-plate holder — fixtures and a tool are included. And if someone forgets the carrier is fitted and reverses into a wall, every part is replaceable.
Technical specifications
| Carries | 4 bikes |
| Fits | 50 mm tow ball |
| Tilting | Yes |
| Folding | Yes |
| Weight | 19,8 kg |
| Max load | 60 kg |
| Max bike weight | 20 kg |
| Max tyre size | 3,25″ |
| Lightboard | 13-pin (incl. reversing light) |
| Locks | Rack + bikes |
| Dimensions | 112 cm wide × 94 cm deep, measured from the centre of the tow ball to the outside edge of the number plate holder (24 cm wide when folded) |
Documentation & downloads
Technical information (Eazzy series)
The full Eazzy-series technical data sheet — mechanics, materials and dimensions.
Instruction manual
The official EAZZY 4 manual — fitting to the car, loading, tilting, folding and care.
ECE type-approval certificate (E4 26R-03)
The official European type-approval certificate (E4 26R-03) covering the EAZZY series.
Spare parts list
Part numbers for every replaceable component of the EAZZY 4.
Ready to ride with four bikes safe?
EAZZY 4 — 4-bike tow bar carrier, supplied nearly fully assembled.
